Glass & Tile Drill Bits, 1/4
Glass & Tile Drill Bits, 1/4

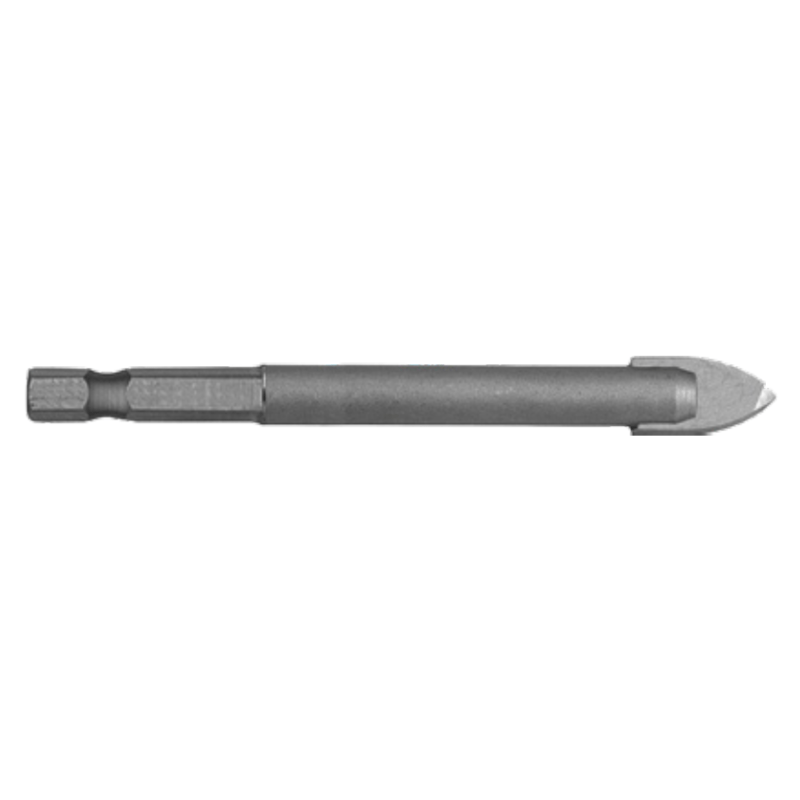

Glass & Tile Drill Bits, 1/4" Hex Shank

Get a Quote

Introduction


Execution:

  • Specially ground carbide tip
  • Grey surface
  • Thinned cross cutting edges provide precise drilling of pilot holes
  • 1/4“ bit drive DIN 3126 - E 6.3

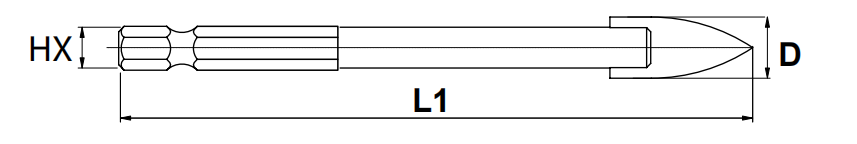

ΦD (mm) ΦD (in) L1 (mm) HX (mm)
3 1/8 75 6.35
4 5/32 75 6.35
5 3/16 75 6.35
6 15/64 75 6.35
8 5/16 85 6.35
10 3/8 85 6.35
