Two-piece assembling shank impact drills in DIN 338 metric and ANSI B.94.11M inch series. The assembling hex-shank design allows the drill body to be replaced while the shank stays in the chuck — a cost-saving format for high-volume impact drilling in metal and wood. Factory-direct from a 20-year precision-tools manufacturer with ISO 9001 / 14001 / 45001 triple-system certification.
 |
 |
DIN 338：

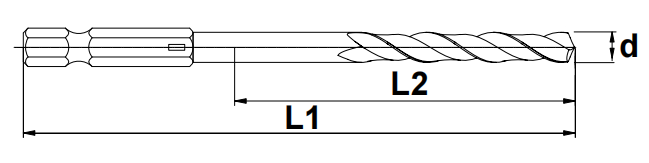

| Φd (inch) | Φd (mm) | L1 (mm) | L2 (mm) |
| - | 1.5 | 61 | 18 |
| - | 2 | 70 | 24 |
| - | 2.5 | 78 | 30 |
| - | 3 | 82 | 33 |
| - | 3.2 | 86 | 36 |
| - | 3.5 | 91 | 39 |
| - | 4 | 96 | 43 |
| - | 4.5 | 101 | 47 |
| - | 4.8 | 107 | 52 |
| - | 5 | 107 | 52 |
| - | 5.5 | 114 | 57 |
| - | 6 | 114 | 57 |
| - | 6.5 | 122 | 63 |
ANSI B.94.11M：
| Φd (inch) | Φd (mm) | L1 (mm) | L2 (mm) |
| 1/16" | 1.58 | 64 | 20 |
| 5/64" | 1.98 | 70 | 24 |
| 3/32" | 2.38 | 78 | 30 |
| 7/64" | 2.78 | 82 | 33 |
| 1/8" | 3.17 | 86 | 36 |
| 9/64" | 3.57 | 91 | 39 |
| 5/32" | 3.96 | 96 | 43 |
| 11/64" | 4.37 | 101 | 47 |
| 3/16" | 4.76 | 107 | 52 |
| 13/64" | 5.16 | 107 | 52 |
| 7/32" | 5.56 | 114 | 57 |
| 15/64" | 5.95 | 114 | 57 |
| 1/4" | 6.35 | 122 | 63 |
Manufactured to DIN 338 and ANSI B.94.11M in an ISO 9001 / 14001 / 45001 triple-certified facility — every drill is inspected before packing.
The drill body assembles onto the hex shank; when the body wears, you replace only the body instead of the whole tool.
The range is split into DIN 338 metric sizes and ANSI B.94.11M inch sizes — both listed in the matrix below.
Yes — custom branding, packaging and bulk programs are available.
Email [email protected] or message us on WhatsApp for wholesale pricing, samples and lead times.
