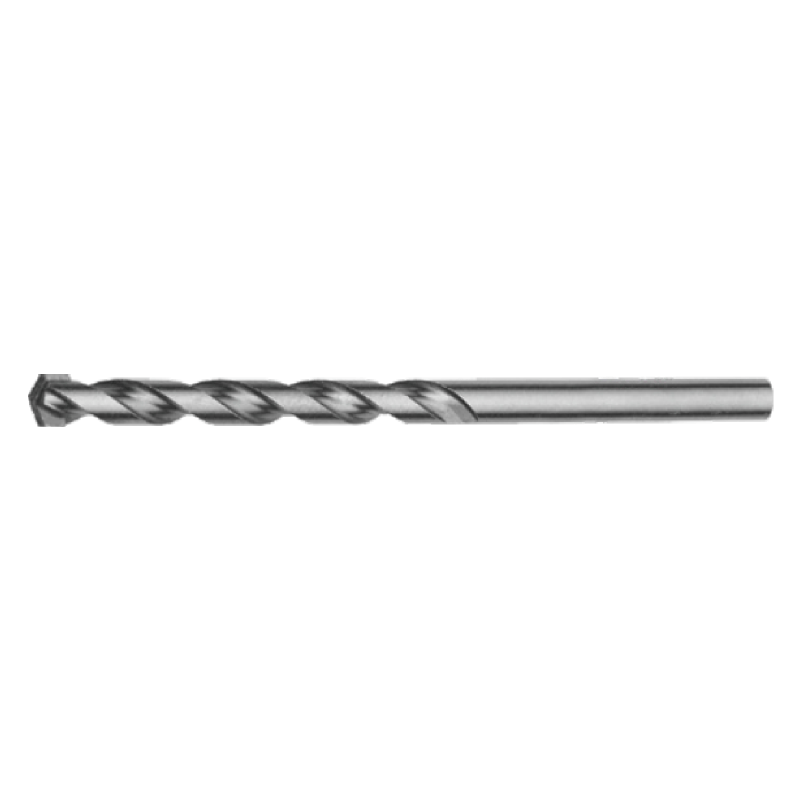

Diamond ground percussion carbide tip with two cutting edges.
For drilling in brick, soft ceramic tile, plaster and aerated concrete blocks.
From Ø13 mm the drill bits are supplied with a multi-flat shank to prevent the drill bits slipping in the chuck.

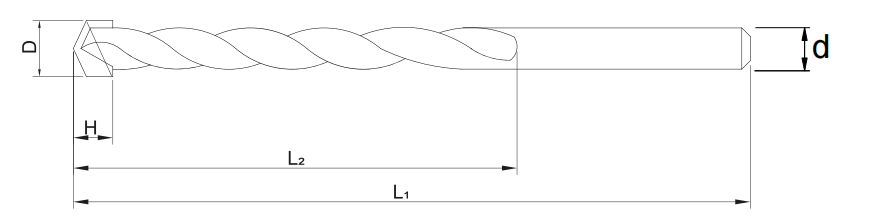

| ΦD (mm) | Φd (mm) | L2 (mm) | L1 (mm) |
| 3 | 3 | 30 | 60 |
| 4 | 4 | 40 | 75 |
| 5 | 5 | 50 | 85 |
| 6 | 6 | 60 | 100 |
| 7 | 7 | 60 | 100 |
| 8 | 8 | 70 | 120 |
| 9 | 9 | 70 | 120 |
| 10 | 10 | 70 | 120 |
| 11 | 10 | 80 | 150 |
| 12 | 10 | 80 | 150 |
| 13 | 10 | 80 | 150 |
| 14 | 10 | 100 | 150 |
| 15 | 10 | 100 | 150 |
| 16 | 13 | 100 | 160 |
| 17 | 13 | 100 | 160 |
| 18 | 13 | 100 | 160 |
| 19 | 13 | 100 | 160 |
| 20 | 13 | 100 | 160 |
| 21 | 13 | 100 | 160 |
| 22 | 13 | 100 | 160 |
| 23 | 13 | 100 | 160 |
| 24 | 13 | 100 | 160 |
| 25 | 13 | 100 | 160 |
| 26 | 13 | 100 | 160 |
 |
Concrete drill bit set (5pc) Ø 4 / 5 / 6 / 8 / 10 mm 5pc |
| ΦD (in) | Φd (in) | L2 (in) | L1 (in) |
| 1/8 | 1/8 | 1-1/2 | 3 |
| 5/32 | 5/32 | 1-1/2 | 3 |
| 3/16 | 3/16 | 2-1/8 | 4 |
| 3/16 | 3/16 | 4 | 6 |
| 1/4 | 1/4 | 2 | 4 |
| 1/4 | 1/4 | 4 | 6 |
| 5/16 | 1/4 | 2 | 4 |
| 5/16 | 1/4 | 4 | 6 |
| 3/8 | 1/4 | 2 | 4 |
| 3/8 | 3/8 | 4 | 6 |
| 7/16 | 1/4 | 2 | 4 |
| 7/16 | 3/8 | 4 | 6 |
| 1/2 | 1/4 | 2 | 4 |
| 1/2 | 3/8 | 4 | 6 |
| 9/16 | 3/8 | 4 | 6 |
| 5/8 | 1/4 | 2 | 4 |
| 5/8 | 3/8 | 4 | 6 |
| 11/16 | 1/2 | 4 | 6 |
| 3/4 | 1/2 | 4 | 6 |
| 7/8 | 1/2 | 4 | 6 |
| 1 | 1/2 | 4 | 6 |
 |
Concrete drill bit set (8pc) Ø 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 mm 8pc |
